TrolMaster WCS-2 3-in-1 Substrate Sensor | Precision EC, Temperature & Water Content Monitoring

Product Overview

Elevate your cultivation strategy with the TrolMaster WCS-2, the ultimate 3-in-1 diagnostic tool for professional substrate management. While standard sensors only track moisture, the WCS-2 provides a comprehensive "look inside" your medium by measuring Volumetric Water Content (VWC%), Pore Water Electrical Conductivity (EC), and Root-Zone Temperature simultaneously.

By monitoring these three critical variables, you can master the art of crop steering—adjusting nutrient strength and dry-back periods to influence plant morphology and maximize essential oil production.

Advanced Monitoring & Alerts

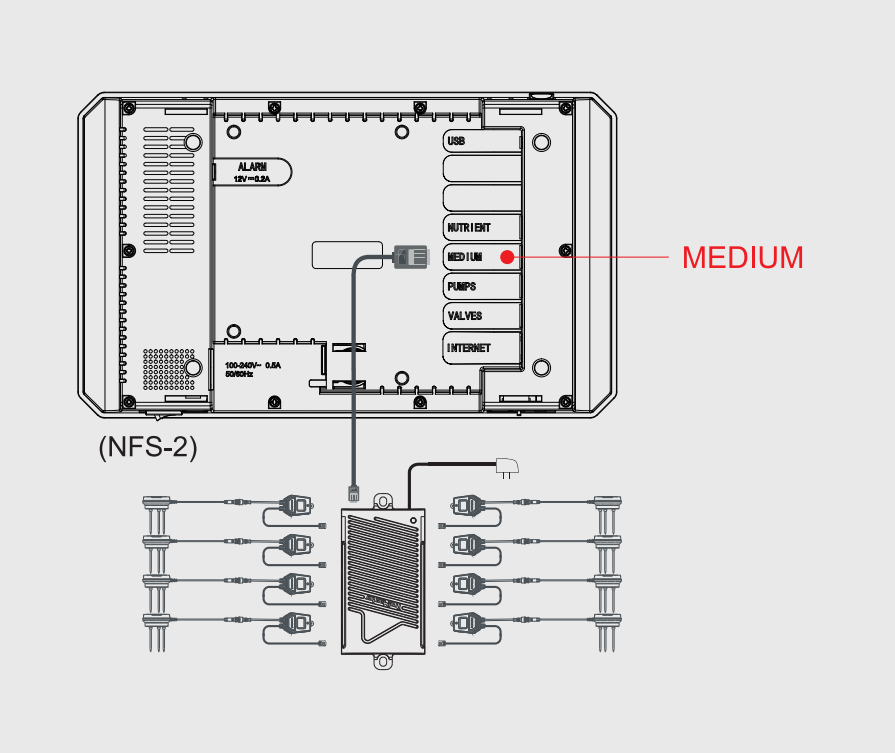

The WCS-2 doesn't just collect data; it protects your crop. Through integration with the Aqua-X, Hydro-X and Tent-X systems, you can set custom alarm limits for each variable. Receive instant push notifications via the TM+ App if your substrate EC climbs too high or if root-zone temperatures drop below your target range, allowing you to react before your plants show stress.

Key Features

• True 3-in-1 Data: Get a complete picture of your root zone with VWC%, EC, and Temperature on a single digital interface.

• Precision Crop Steering: Perfect for managing "P1" and "P2" irrigation events by tracking exact salt accumulation (EC) and moisture depletion.

• Multi-Substrate Compatible: Once calibrated, it provides lab-grade accuracy in Rockwool, Coco Coir, and Soil-based media.

• Durable Multi-Prong Design: High-grade stainless steel probes ensure long-term stability and resistance to corrosion from concentrated nutrient solutions.

Technical Specifications

Pro Tips: Calibration & Maintenance

Cleaning & Maintenance

• Biofilm & Salt Removal: Nutrient salts and organic biofilms can "insulate" the EC probes, leading to false low readings. Clean the prongs monthly with a soft brush and a mild detergent or 70% Isopropyl Alcohol.

• Rinse Thoroughly: After cleaning, ensure the sensor is rinsed with distilled or RO water to remove any cleaning agent residue before re-insertion.

Calibration for Accuracy

• The "Dry" and "Saturated" Reset: To ensure the EC and VWC% readings are accurate for your specific nutrient brand and medium, perform a two-point calibration. Calibrate the sensor in open air for your 0% baseline, and then in a fully saturated sample of your medium to set the 100% (field capacity) mark.

• Consistent Placement: Always insert the sensor at a consistent depth and distance from your drippers. Changes in placement can lead to perceived "fluctuations" in EC that are actually just local variations in the pot.
