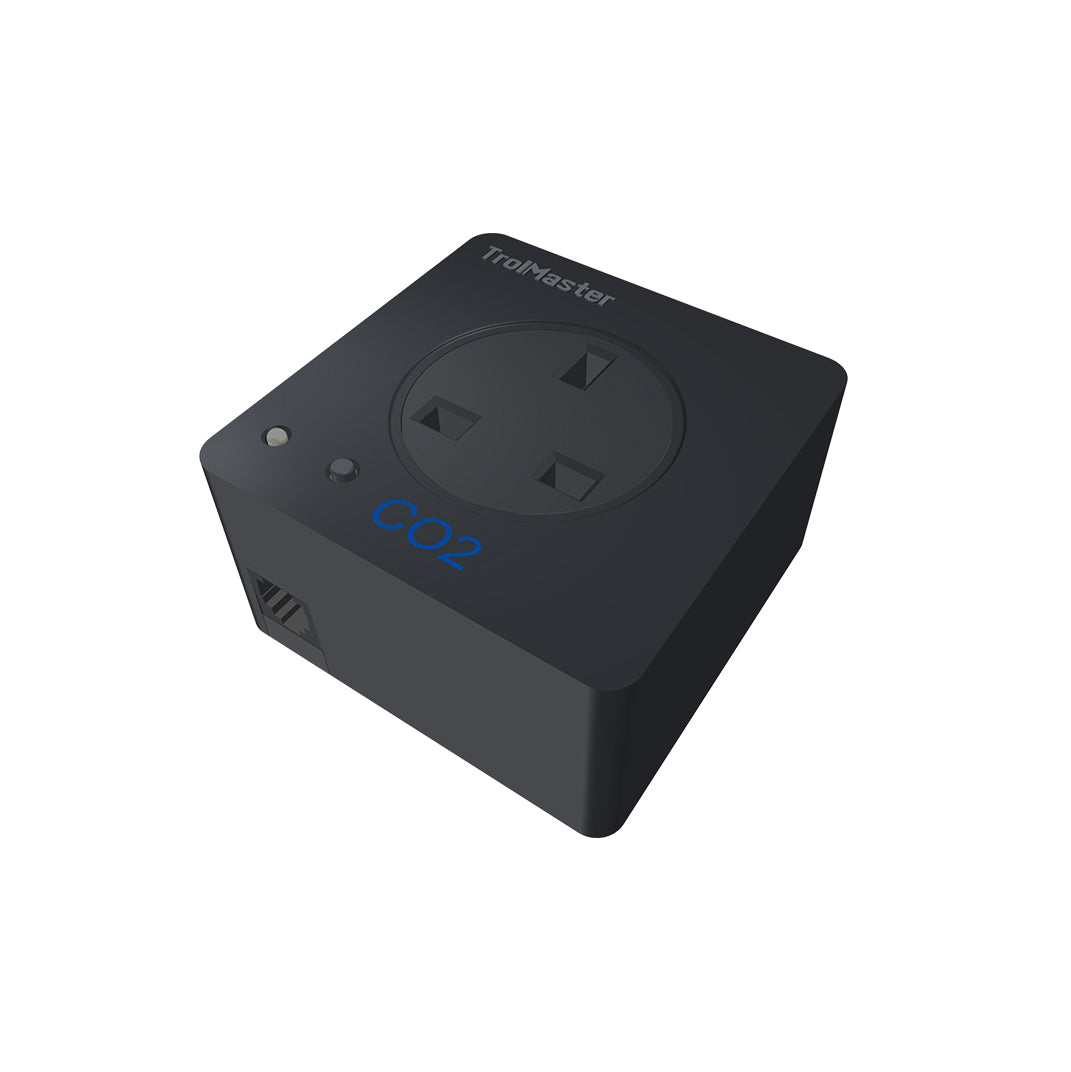

TrolMaster DSC-2 CO2 Device Station | 240V UK-Specific Supplemental Control

Name: TrolMaster DSC-2 CO2 Device Station | 240V UK-Specific Supplemental Control
Brand: TrolMaster
SKU: TM-CO2-DS
Price: 79.95 GBP
Availability: InStock

£79.95

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Specifically engineered for the UK and European markets, the TrolMaster DSC-2 CO2 Device Station provides a high-voltage solution for managing Carbon Dioxide levels. This specialized "smart-plug" interfaces directly with your Hydro-X or Tent-X systems, allowing you to automate heavy-duty 240V CO2 generators, Solenoid Controlled regulators, or exhaust fans with surgical precision.

Key Features:

UK Standard Integration: Features a standard UK 3-pin plug configuration, specifically designed to handle the 240V power requirements of professional British grow rooms.
Dual-System Compatibility: Fully compatible with both the Hydro-X environmental controller and the Tent-X grow tent system.
Flexible Operational Modes: Can be configured to either supplement CO2 (activating regulators/generators when levels are low) or exhaust CO2 (activating fans to vent the room if levels become too high).
High Power Capacity: Robustly handles equipment rated up to 10 Amps at 240V, making it suitable for most commercial CO2 enrichment and ventilation hardware.
Communication Feedback: Integrated LED indicator provides real-time status:
- Solid Green: Device is addressed, connected, and active.
- Slow Blinking Green: Connected and addressed, but currently in standby.
- Blinking Red: Overload detected—easily reset by unplugging the module.

Technical Specifications

Feature	Specification
Input/Output Voltage	100–240 VAC, 50/60Hz
Maximum Current	10A
Operating Temp	32–122°F (0–50°C)
Operating Humidity	≤90%
Dimensions	85mm(L) x 80mm(W) x 90mm(H)
Gross Weight	0.34 kg / 12 oz

What’s in the Box?

1 x CO2 Device Station (DSC-2)
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter

Strategic Setup Tip:

The DSC-2 is best used alongside the MBS-S8 CO2 Sensor. By linking these via the Hydro-X or Tent-X, you can create a closed-loop system where the sensor detects the drop in PPM and the DSC-2 instantly triggers your CO2 source to maintain the exact growth environment required.
