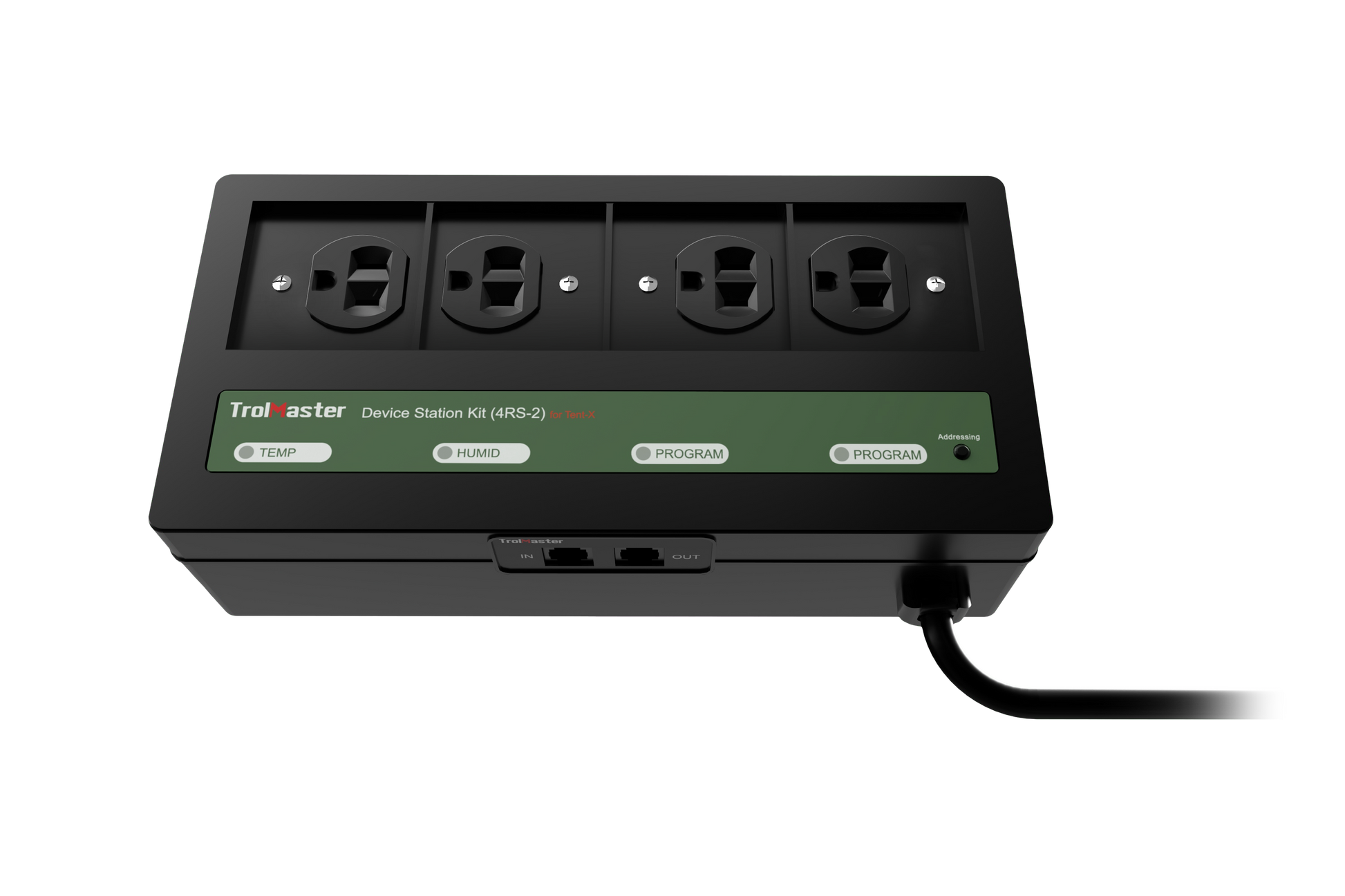

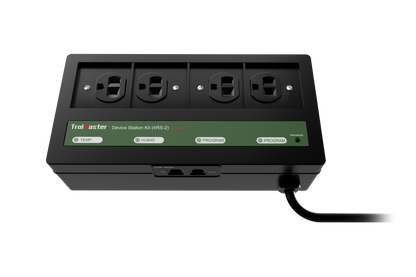

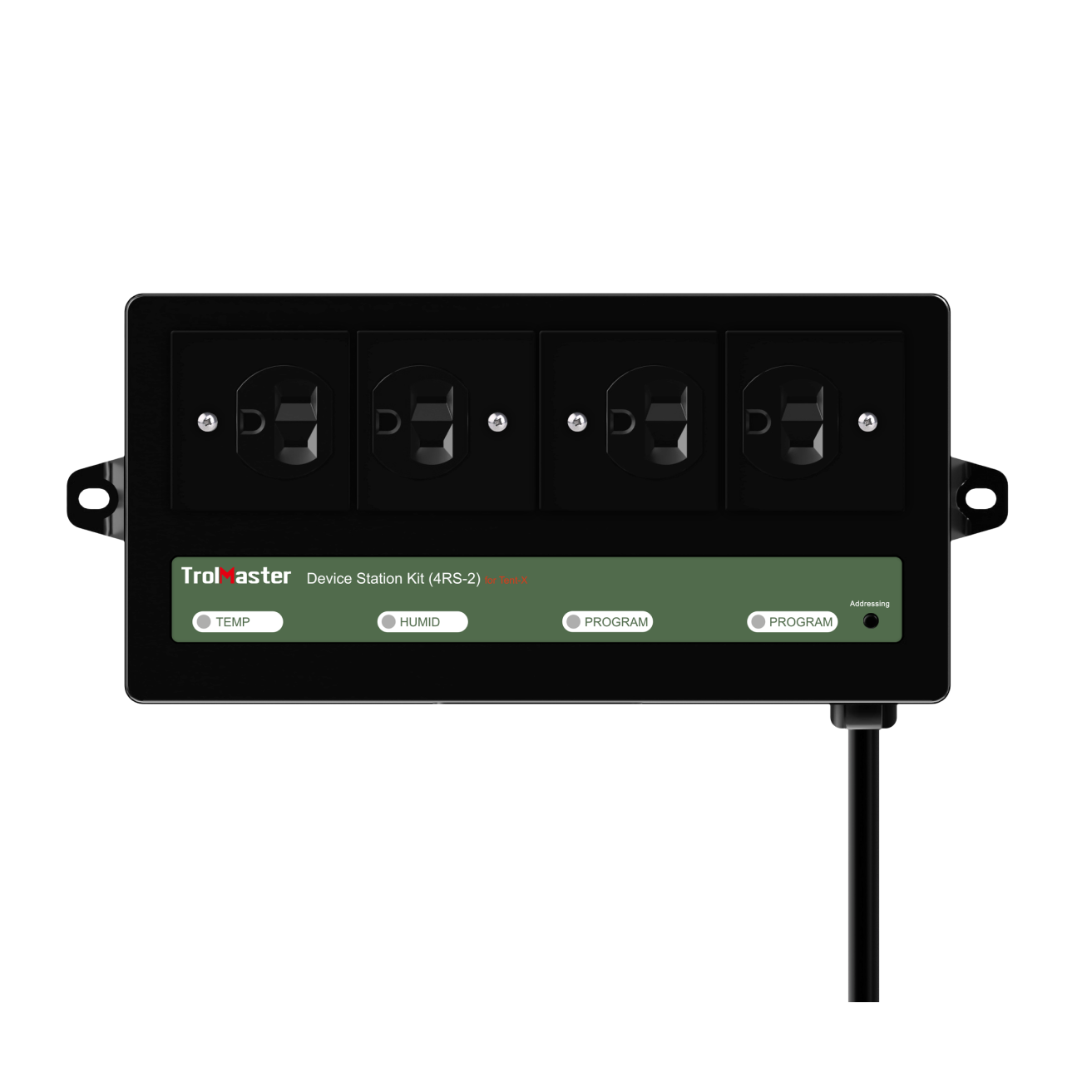

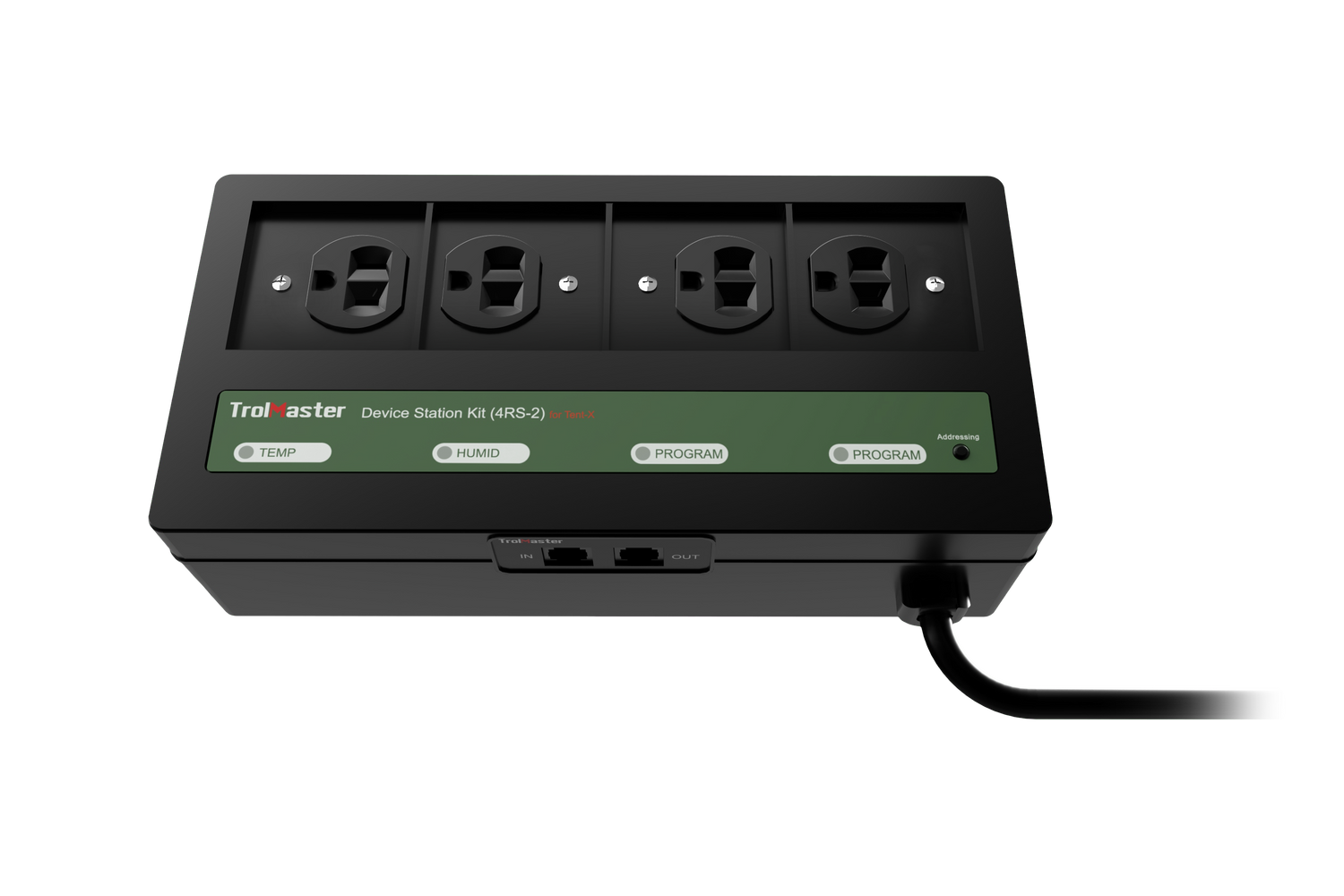

TrolMaster 4RS-2 Device Station Kit | 4-Outlet Universal Module for Tent-X Control

Product Overview

The TrolMaster 4RS-2 is the ultimate power management solution for growers using the Tent-X (TCS-1) system. This universal 4-outlet device module kit acts as a central power hub, allowing you to connect and automate four separate pieces of equipment through a single, streamlined station. By connecting the 4RS-2 to your Tent-X via RJ12 cables, you instantly transform your "dumb" appliances into intelligent, sensor-driven components of your grow environment.

Heavy-Duty Power & Smart Configuration

Built for high-performance grow rooms, each of the four outlets on the 4RS-2 is capable of providing up to 15A of power, ensuring you can safely run energy-intensive devices like heaters, large dehumidifiers, or high-flow pumps. To simplify your setup, the kit comes with four pre-configured default outputs (ordered left to right):

• DST x1 (Temperature): For heaters or cooling fans.

• DSH x1 (Humidity): For humidifiers or dehumidifiers.

• DSP x2 (Program/Timer): For irrigation pumps, light movers, or circulating fans.

Quick & Easy Installation

The 4RS-2 was designed with a "plug-and-play" philosophy. The main power cable connects directly to your wall socket, while the internal logic is handled by the Tent-X controller. This eliminates the need for complex electrical wiring or multiple individual plug-in modules cluttering your tent. It occupies the 4 device module slots on your controller, providing a clean, professional, and centralized control point.

Key Features

• 4-in-1 Power Hub: Consolidates your climate and irrigation power needs into one durable station.

• High Amperage Capacity: Each output supports up to 15A, handling heavy hardware with ease.

• Tent-X Synergy: Seamlessly integrates with the TCS-1 to automate devices based on live sensor data.

• Pre-Mapped Logic: Defaulted to Temperature (DST), Humidity (DSH), and two Program (DSP) outlets for instant setup.

• Reduced Cable Clutter: Replaces four individual modules with one centralized RJ12 connection.

⚙️ Technical Specifications

Pro Tips: Setup & Load Management

Managing Your Electrical Load

• Check Your Circuit: While each outlet can handle 15A, ensure the main circuit breaker powering the 4RS-2 can support the combined wattage of all four devices running simultaneously.

• Heater & Dehumidifier Placement: If using the DST outlet for a heater and the DSH outlet for a dehumidifier, ensure they aren't positioned directly next to each other, as the heat from one can "trick" the humidity sensor of the other.

Safety & Maintenance

• Cable Routing: Keep your RJ12 data cables separated from the high-voltage power cables where possible to prevent any electromagnetic interference (EMI) that could affect the digital signal.

• Firmware Verification: Ensure your Tent-X is recognizing all four modules. If an outlet isn't responding, check the "Device List" on your controller to ensure the 4RS-2 is properly addressed.
