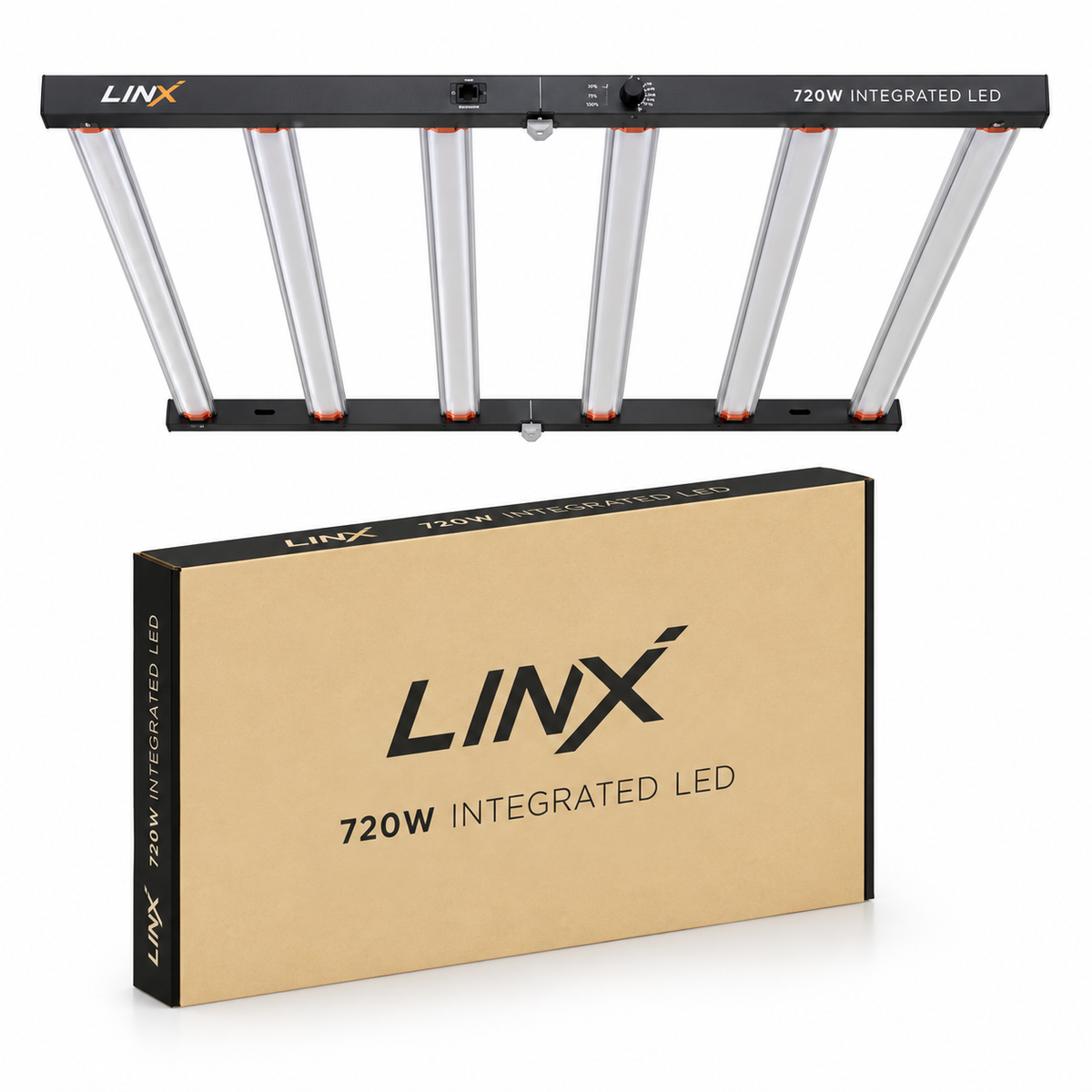

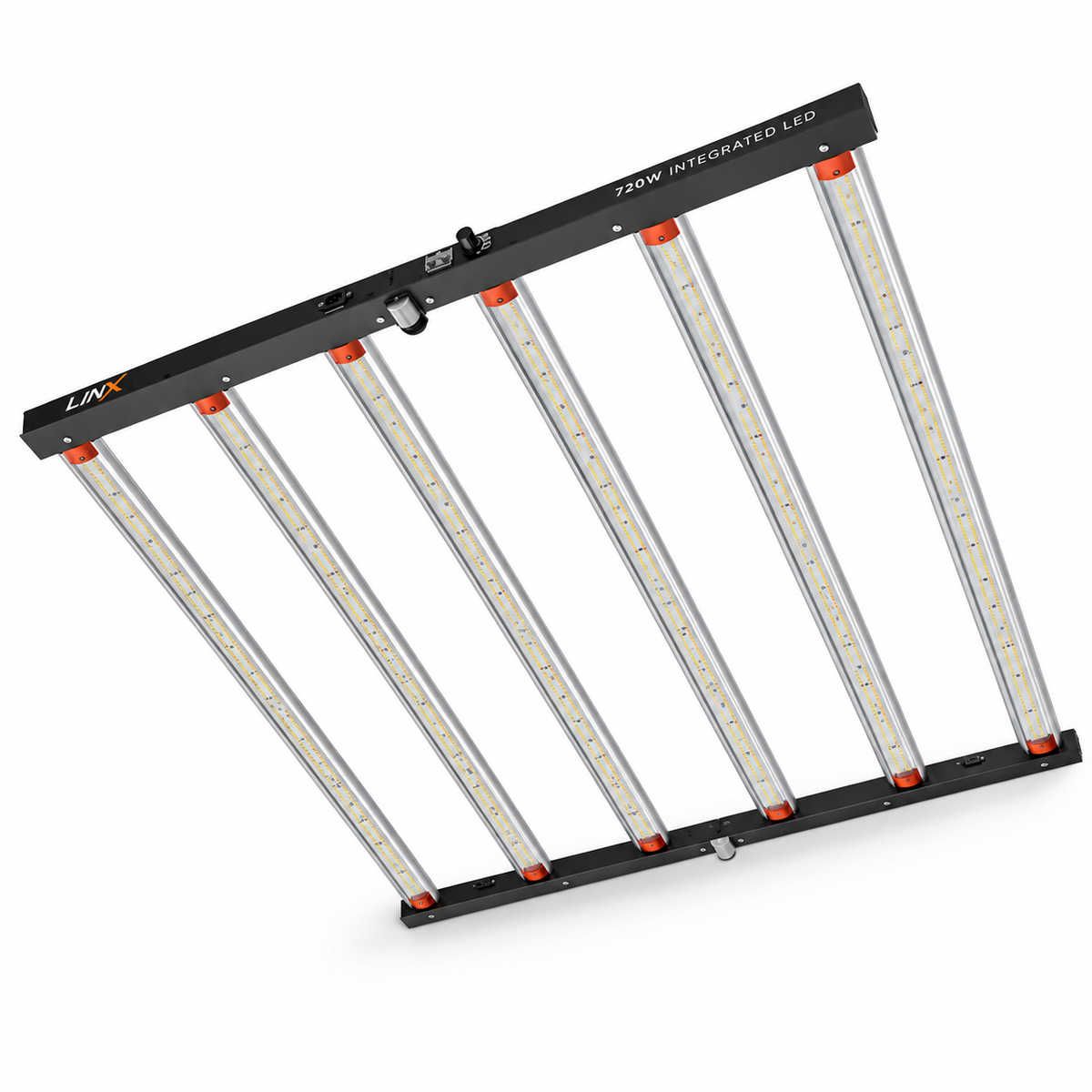

LINX 720W Integrated Full-Spectrum LED Grow Light

High-Output 720W LED Grow Light with Integrated Driver

The LINX 720W Integrated LED Grow Light is a full-spectrum six-bar horticultural fixture designed for complete indoor plant-growth cycles. It produces a stated Photosynthetic Photon Flux of 2,016 µmol/s with photon efficacy reaching 2.8 µmol/J.

An integrated driver removes the need for a separate external ballast, while manual dimming and a 0–10V control connection provide flexible light management. The foldable six-bar frame distributes light broadly across the plant canopy and makes the fixture easier to install, transport and store.

Key Features & Benefits

• High-output 720W full-spectrum LED grow light
• Produces a stated 2,016 µmol/s PPF
• Photon efficacy of up to 2.8 µmol/J
• Full-spectrum light for propagation, vegetative growth and flowering
• Six-bar layout for broad and uniform canopy coverage
• Integrated driver eliminates the need for an external ballast
• Manual dimmer for straightforward intensity adjustment
• 0–10V control connection for compatible lighting controllers
• Linkable design for coordinated control of multiple fixtures
• Foldable frame simplifies installation, storage and transport
• Passive thermal management with no cooling fans or moving parts
• Protective polycarbonate covers help shield internal components

2,016 µmol/s Full-Spectrum Output

The LINX 720W LED produces a total PPF output of 2,016 µmol/s. Its full-spectrum output combines 2835 Pro LEDs with 3030 660nm deep-red LEDs to support photosynthesis throughout the complete plant-growth cycle.

A maximum stated efficacy of 2.8 µmol/J provides high horticultural light output from the fixture’s 720W power consumption. The open six-bar design spreads the LEDs across the growing area, helping to provide more even canopy coverage than a compact central light source.

Integrated Driver and Adjustable Output

The driver is built into the LINX fixture, creating an all-in-one lighting system that does not require a separate ballast. This reduces additional wiring and makes installation cleaner and more straightforward.

The integrated dimmer allows the output to be reduced for young plants before being increased gradually as the canopy develops. A 0–10V control port also enables connection to a compatible external lighting controller.

Passive Cooling and Foldable Construction

The aluminium bar structure dissipates heat passively without relying on cooling fans. With no fan motor or moving cooling components, the light operates quietly and has fewer mechanical components requiring maintenance.

The frame folds for storage and transport. Once installed, the bars should be opened fully to provide the intended light distribution and heat dissipation.

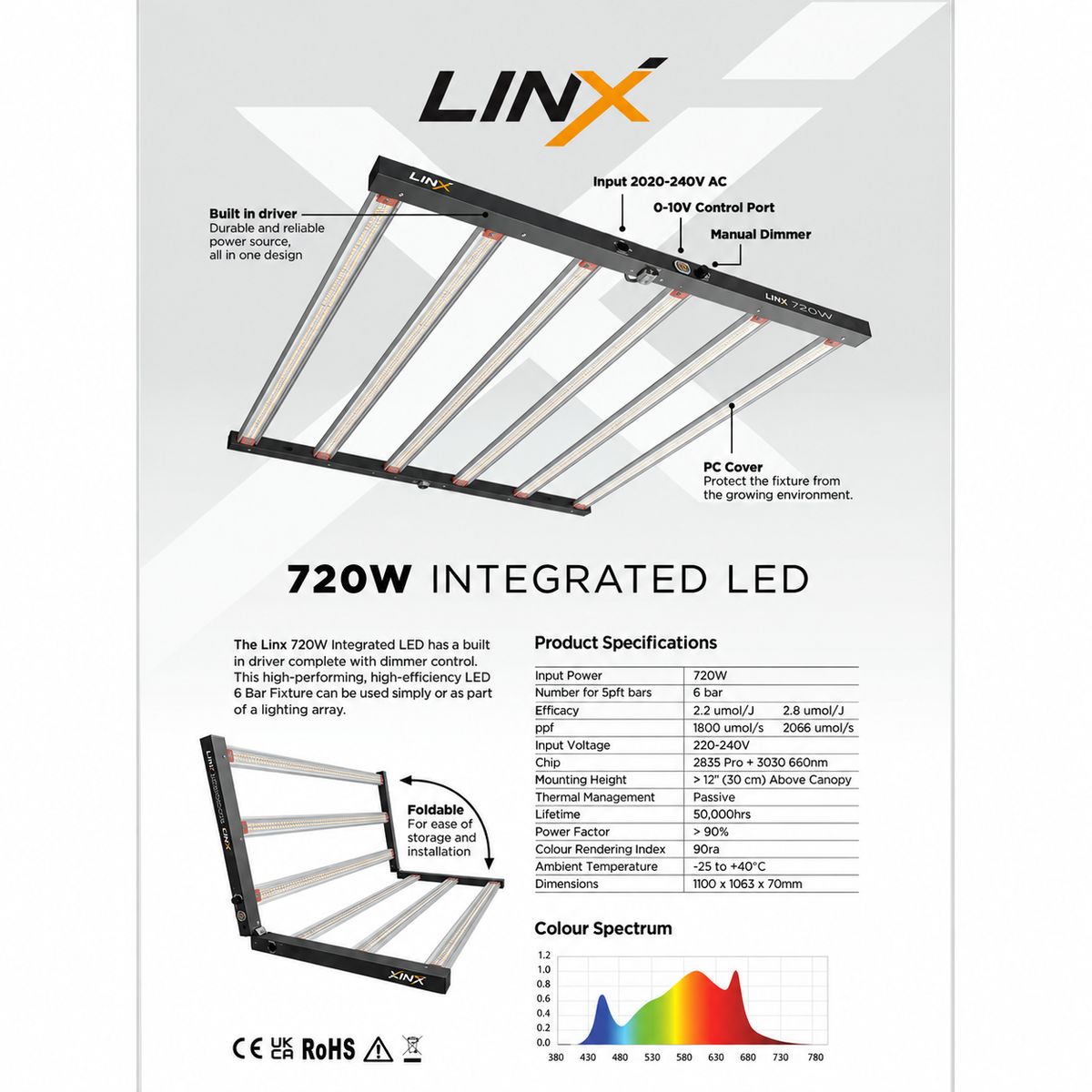

Technical Specifications

Installation and Best Practice

1. Unfold the fixture fully and inspect the frame, driver, cable and connections before installation.
2. Suspend the fixture from suitable support bars using correctly rated hanging equipment.
3. Keep sufficient clearance around the fixture for passive heat dissipation.
4. Begin with a reduced output or increased hanging height when lighting young plants.
5. Increase the output gradually while monitoring plant response.
6. Use a PAR meter where possible to set the appropriate height and intensity for the crop.

Important Information

The appropriate mounting height and dimmer setting depend on the plant species, growth stage, canopy density and environmental conditions. A fixed coverage area or hanging height should not be applied to every growing environment.

Keep water, nutrient solution and foliar sprays away from the fixture, integrated driver and electrical connections. Installation and operation must follow the instructions supplied with the product.
