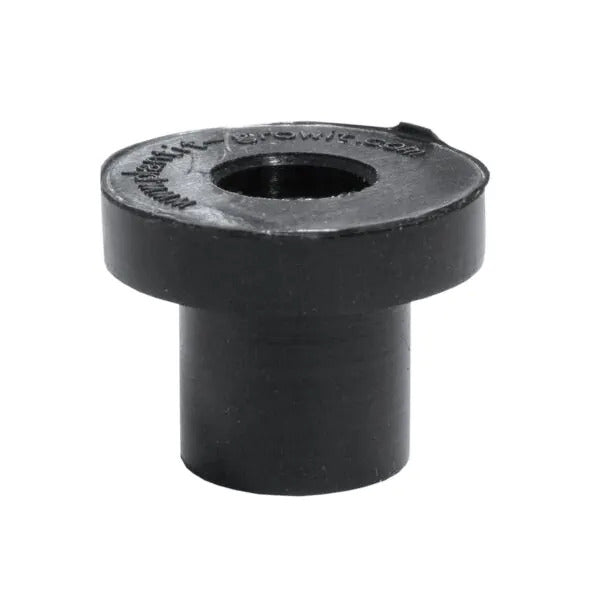

AutoPot Top Hat Grommet | 9mm Leak-Proof Seal for Reservoirs & Tanks

Name: AutoPot Top Hat Grommet | 9mm Leak-Proof Seal for Reservoirs & Tanks
Brand: AUTOPOT
SKU: AP-6MM-GROMMET
Price: 0.9 GBP
Availability: InStock

£0.90

Sale Sold out

Tax included. Shipping calculated at checkout.

Size: 6MM

6MM 9MM

Quantity

AutoPot Top Hat Grommets: 100% Watertight Reservoir Seals (6mm & 9mm)

Achieve a professional, leak-proof connection with genuine AutoPot Top Hat Grommets. These essential irrigation components are engineered to provide a flawless, airtight seal where pipework enters a reservoir or module tray. Designed specifically for the AutoPot range, these grommets allow growers to customise their setups or maintain existing systems with total confidence against water damage and pressure loss.

The Importance of the Top Hat Grommet

In gravity-fed irrigation, the integrity of the reservoir seal is critical. AutoPot Top Hat Grommets eliminate the need for messy sealants or glues. They use compression technology to grip the pipe as it passes through the plastic wall, ensuring that your nutrient solution stays in the lines and not on the floor.

6mm Top Hat Grommet (Standard Flow)

The 6mm Top Hat Grommet is the legacy standard for the classic AutoPot range. It is tailored for micro-bore irrigation setups where precision and space-saving are priorities.

System Compatibility: Designed for use with the AQUAvalve3 (the original black and yellow valve) and older 30L/47L reservoirs.
Drilling Requirement: Fits perfectly into a 10mm hole.
Best For: Standard home grows using mineral-based nutrients and 6mm (1/4") piping.

9mm Top Hat Grommet (High Flow)

The 9mm Top Hat Grommet was introduced to support the increased flow requirements of modern hydroponic technology. The larger internal diameter significantly reduces the risk of blockages from salt build-up or organic sediments.

System Compatibility: Essential for the AQUAvalve5 (grey and black) and all current 9mm AutoPot systems.
Drilling Requirement: Fits into a 12.5mm hole.
Best For: Larger systems, commercial setups, and growers using thicker organic additives that require higher water velocity.

Key Technical Features

UV-Stabilised Rubber: Manufactured from high-grade synthetic rubber that resists degradation from UV light, heat, and corrosive nutrient solutions.
Universal DIY Application: While designed for AutoPot, these grommets are the "go-to" solution for DIY growers looking to convert plastic buckets, drums, or containers into custom hydroponic reservoirs.
Reinforced Flange: The "Top Hat" design features a wide outer flange that prevents the grommet from being pulled through the hole, ensuring a permanent and secure seat.
Airtight Security: Prevents air from entering the lines, which is crucial for maintaining the vacuum-pressure required for AQUAvalve functionality.

Installation Instructions for a Perfect Seal

Preparation: Drill a clean hole (10mm for 6mm grommets, 12.5mm for 9mm grommets) near the bottom of your reservoir. Ensure all plastic burrs are removed.
Insertion: Push the grommet into the hole until the "brim" of the hat sits flush against the outside of the tank.
Connection: Wet the end of your pipe with water or a small amount of dish soap to reduce friction, then slide it through the grommet.
Locking: For maximum security, push a 13-6mm or 13-9mm Filter into the end of the pipe inside the tank. This expands the pipe slightly, locking the grommet into place for a fail-safe seal.
