Aether 120W Under Canopy LED Lights – Boxed Pair

Aether 120W Under Canopy LED Lights – Professional Supplemental LED Lighting

Aether 120W Under Canopy LED Lights are purpose-designed supplemental LED fixtures for positioning beneath or around dense plant canopies. Supplied as a boxed pair of two 120W LED fixtures, the system delivers targeted light into areas that receive less illumination from the primary overhead grow light.

Each Aether fixture combines a low-profile design with a wide 120° beam angle, 0–10V dimming and an IP66-rated housing. Multiple fixtures can also be linked together, making the Aether system suitable for anything from a small supplementary lighting installation to larger indoor horticultural environments.

Key Features & Benefits

• 120W per LED fixture: each light operates at a rated input power of 120W.
• Boxed pair: supplied with two Aether LED light fixtures.
• Under-canopy lighting: designed to introduce supplemental light beneath dense plant canopies where overhead lighting has reduced penetration.
• 120° beam angle: provides broad light distribution from the low-profile fixture.
• 0–10V dimming: allows light intensity to be adjusted when connected to a suitable compatible control system.
• Daisy-chain capability: up to 15 fixtures can be linked as part of an expandable lighting installation.
• IP66 rated: provides a high level of protection against dust and water ingress for demanding indoor horticultural environments.
• Flexible positioning: Aether states that the fixtures can be used for both under-canopy and above-canopy mounting.
• Long operating-life specification: manufacturer-rated L90 performance of more than 50,000 hours.

Why Use Under-Canopy LED Lighting?

As plant canopies become denser, foliage can restrict the amount of light reaching lower areas. Increasing the intensity of an overhead fixture does not necessarily provide even light distribution throughout the complete canopy.

Under-canopy lighting approaches the problem from a different direction. By positioning dedicated LED fixtures beneath the canopy, supplemental light can be delivered directly into areas that would otherwise receive considerably less illumination.

The Aether 120W Under Canopy LED is specifically designed for this application. Its slim profile allows the fixture to be positioned beneath established canopies, while the wide 120° beam distributes light across the surrounding area.

Aether R8W Technical Specifications

0–10V Dimming & Lighting Control

The Aether R8W supports 0–10V dimming, allowing output to be adjusted rather than requiring every fixture to operate continuously at maximum intensity.

This provides greater flexibility when integrating under-canopy lighting into an existing lighting strategy. Aether identifies TrolMaster and Vivosun as suitable controller platforms for the 120W under-canopy system.

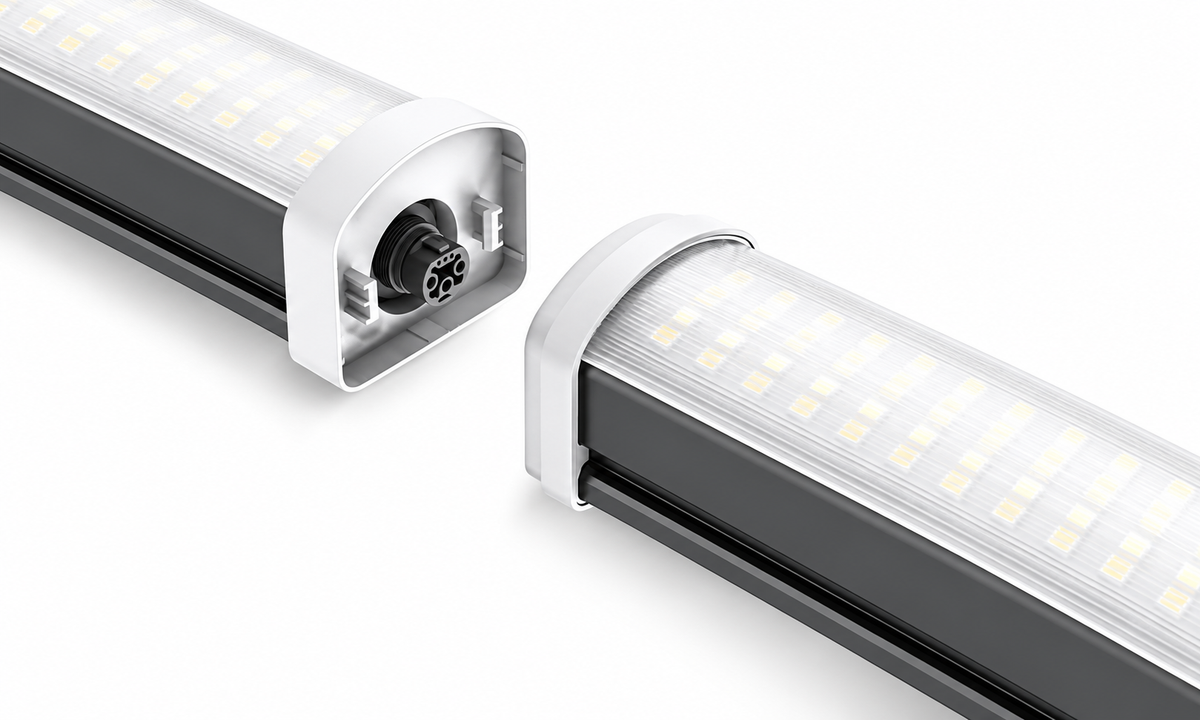

Expandable Daisy-Chain Installation

Aether 120W fixtures are designed for expandable installations. Up to 15 fixtures can be daisy-chained, reducing the need for an individual mains connection for every light and helping to create a cleaner installation across larger growing areas.

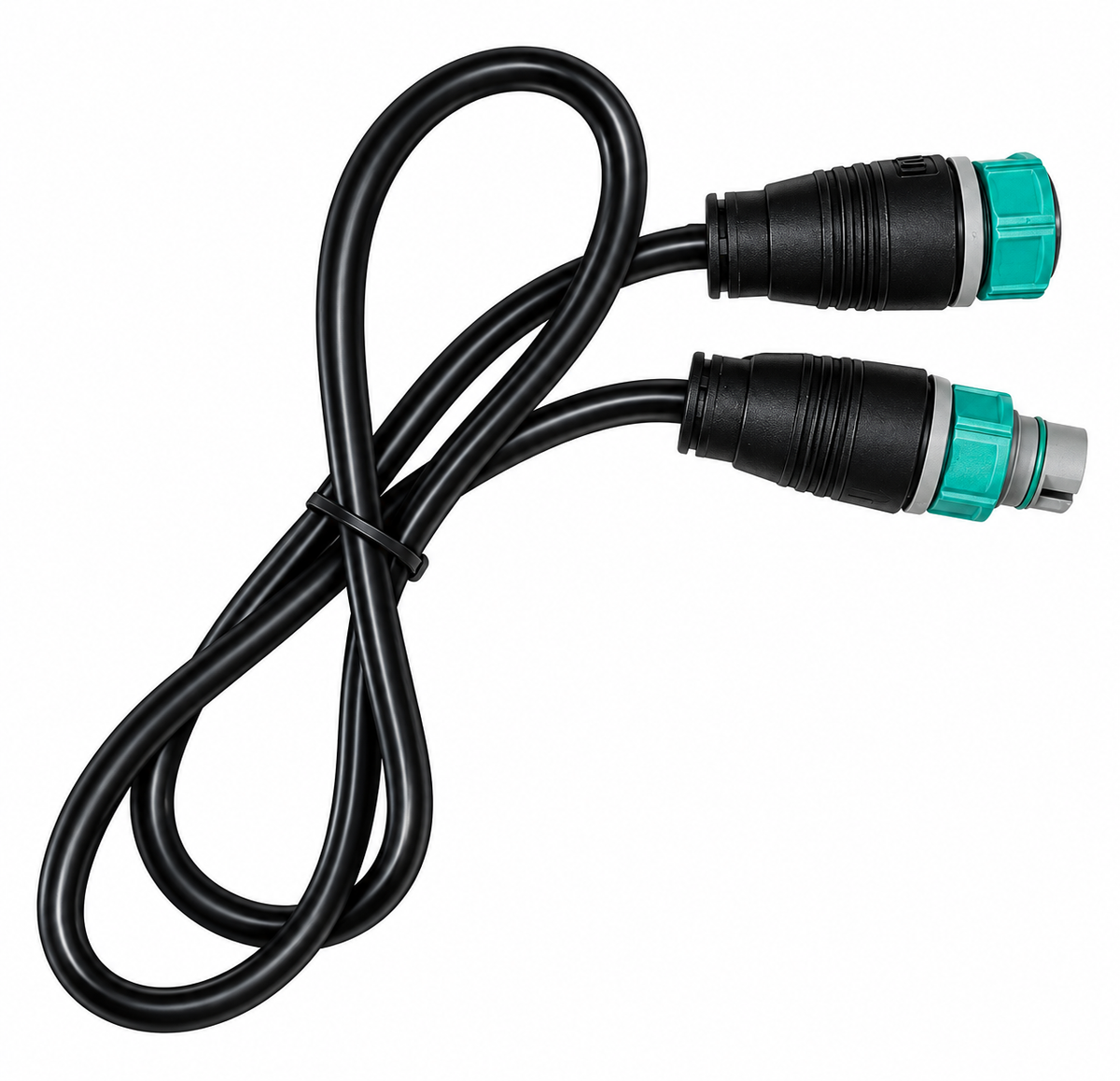

Suitable Aether link cables, mounting brackets and control equipment can be used to configure the installation around the available space.

IP66 Protection

Under-canopy fixtures operate close to irrigation equipment, growing media and humid plant environments. The Aether R8W carries an IP66 rating, providing protection against dust ingress and powerful water jets.

Electrical connections should nevertheless be installed and operated in accordance with the manufacturer's instructions and appropriate electrical safety practices.

What's in the Box?

• 2 × Aether 120W LED light fixtures
• 1 × UK power cable
• 1 × user manual

Each Aether light fixture is supplied with its own unique serial number.

Installation & Positioning

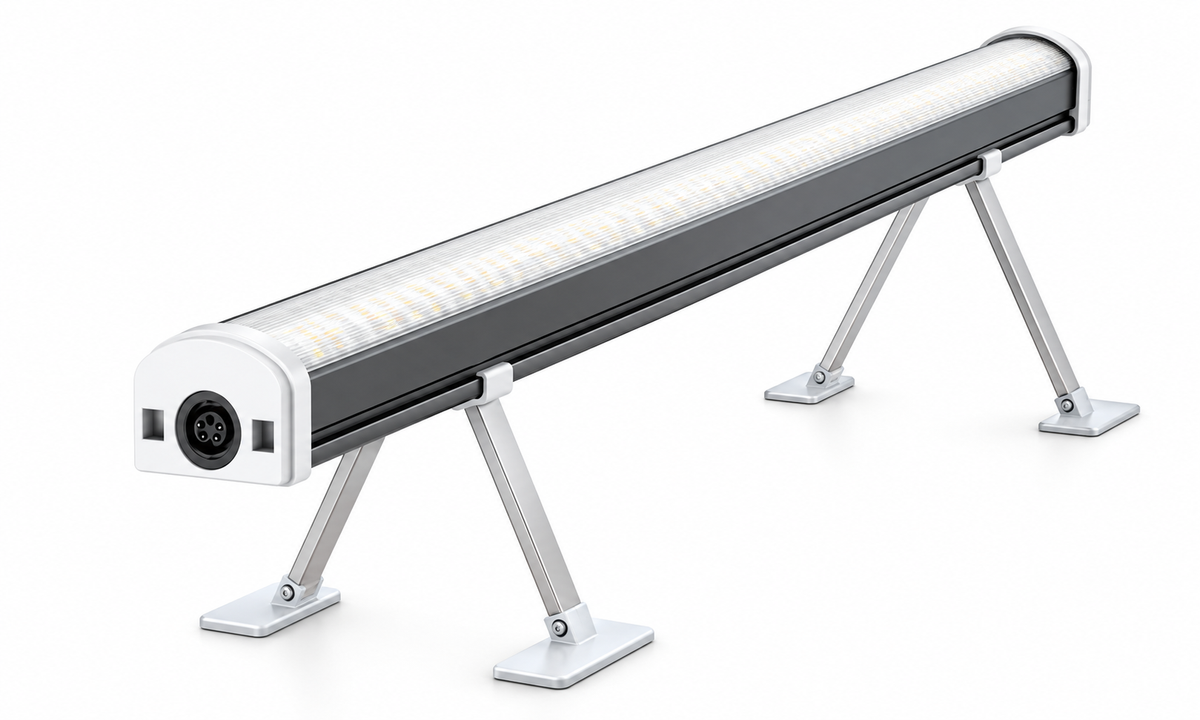

The slim Aether fixture measures approximately 115.8 cm long, 7.4 cm wide and 8.4 cm high, allowing it to fit into spaces where a conventional overhead LED fixture would be impractical.

Position the fixtures to supplement the primary lighting system rather than creating excessive intensity in a concentrated area. The 0–10V dimming capability can then be used with a compatible controller to adjust output to suit the installation.

Suitable for Scalable Indoor Horticultural Lighting

The combination of 120W output per fixture, 0–10V control, IP66 protection and daisy-chain expansion makes the Aether R8W particularly well suited to growers wanting to build a scalable supplemental lighting system.

Start with the boxed pair and expand the installation with compatible Aether link cables, mounting accessories and additional fixtures where required.
