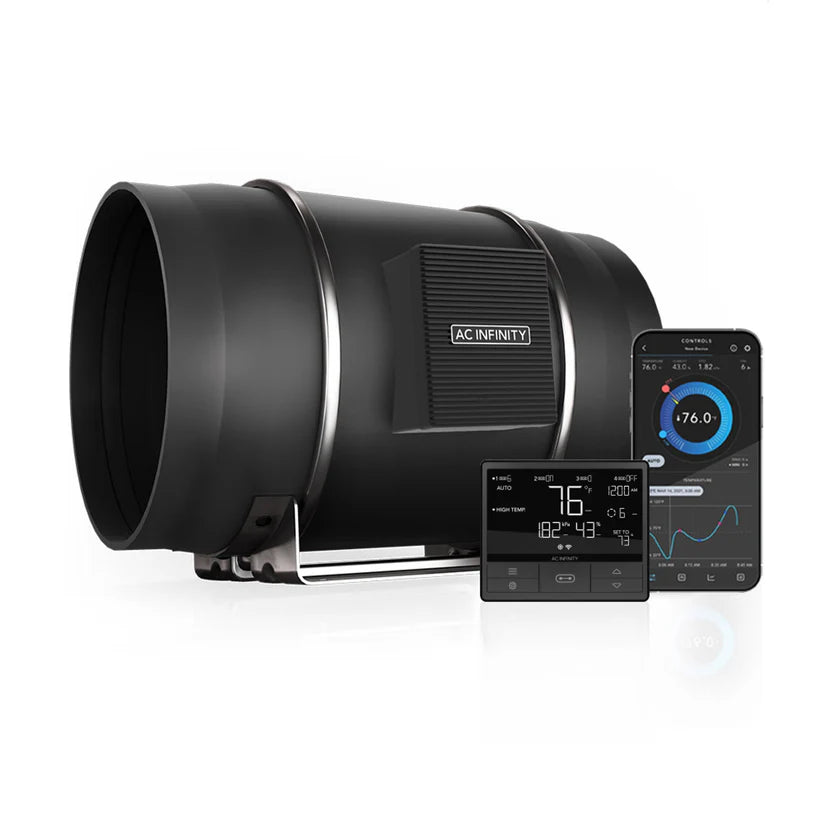

AC Infinity Cloudline Pro T10 | 10 Inch Inline EC Fan

Name: AC Infinity Cloudline Pro T10 | 10 Inch Inline EC Fan
Brand: AC Infinity
SKU: ACI-CLOUDLINE-PRO-T10
Price: 309.0 GBP
Availability: InStock

£309.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Smart Climate-Controlled Grow Room Ventilation System

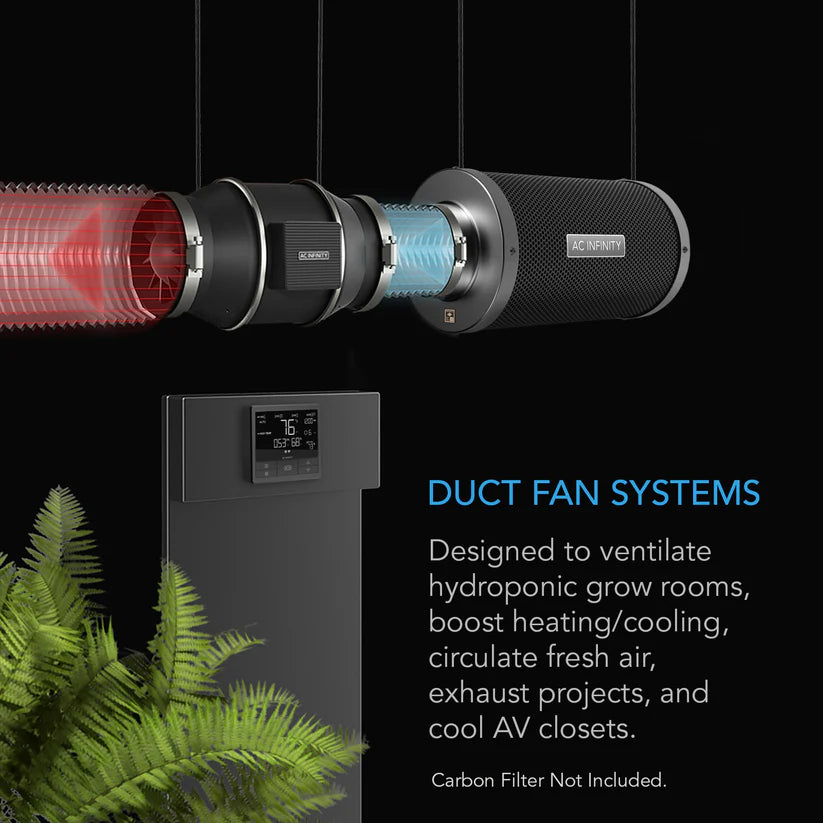

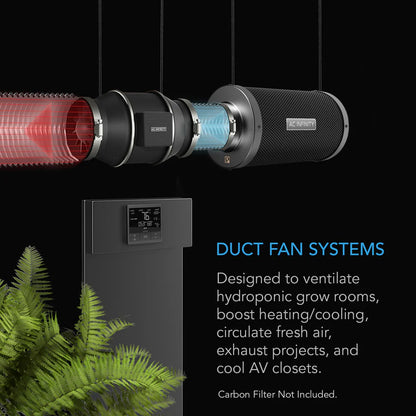

Automate your cultivation space with the advanced AC Infinity Cloudline Pro T10. Engineered for growers who demand precision microclimate management, this 10-inch inline duct fan system features an intelligent environmental controller. Generating a massive 1201 CFM airflow while remaining exceptionally quiet, it easily extracts heat and humidity from large grow rooms, multi-tent commercial facilities, and warehouses.

The standalone advantage of the T-Series is the included smart controller. This central unit allows you to program dynamic triggers based on temperature, relative humidity, and VPD (Vapour Pressure Deficit). Instead of manually adjusting fan speeds, the system automatically ramps its energy-efficient EC motor up or down to hold your exact target environment. Built for longevity in high-moisture setups, the IP44-rated housing features dual ball bearings rated for 67,000 hours of continuous runtime.

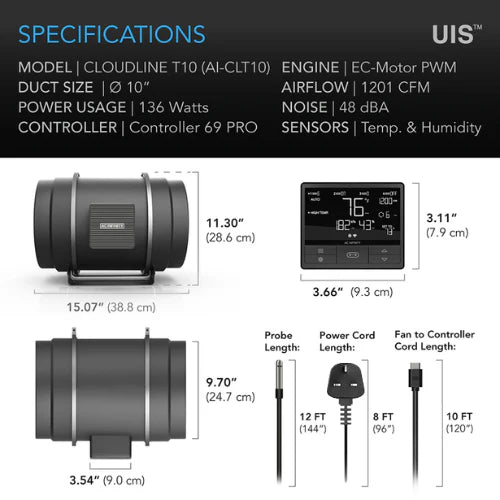

Technical Specifications & Engineering Data

Specification Parameter	Engineering Data Value
Duct Connection Size	10 Inches (250 mm)
Total Airflow Capacity	1201 CFM (2040 m³/h)
Acoustic Noise Output	48 dBA
Static Pressure Rating	598 Pa

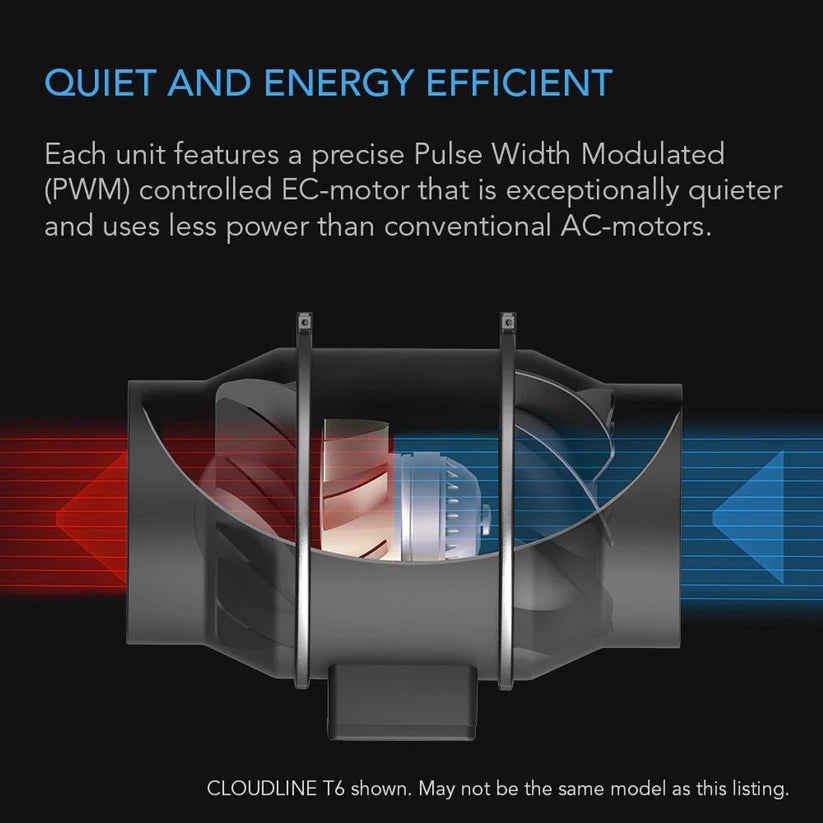

Motor Type Architecture	PWM Controlled EC (Electronically Commutated)
Controller Features	Temperature, Humidity, VPD, Timer, Cycles, Schedules
Maximum Power Draw	225 Watts
Ingress Protection Rating	IP-44 (Dust and Splash Resistant)
Bearing Assembly Type	Dual Ball Bearings
Expected Lifespan (L10)	67,000 Hours Continuous Operating Time
Voltage / Frequency	100V - 240V AC / 50-60Hz
Fan Unit Dimensions	28.5 x 37.8 x 26.5 cm (11.22 x 14.88 x 10.43 in)
Controller Connection	Universal Intelligent System (UIS) via Type-C Interface

How to Use the Cloudline Pro T10 Fan System

Follow these straightforward steps to safely mount, wire, and configure your smart environmental ventilation system.

1. Mount the Fan and Smart Controller

Identify the airflow direction using the directional arrow embossed on the plastic fan body.
Secure the heavy-duty mounting base horizontally or vertically to your grow room frame or wall using the included hardware.
Mount the smart controller outside your grow room or on a wall at eye level using the included bracket or magnetic back.

2. Position the Sensor Probe

Plug the thermal climate probe into the bottom port of the smart controller.
Route the cord into your grow space and hang the sensor head directly at canopy level (the top height of your plants).
Keep the probe shaded from direct grow light rays and away from humidifiers to ensure accurate ambient readings.

3. Connect and Power On

Plug the fan's data cable directly into Port 1 on the smart controller.
Connect the fan's main power adapter into a standard mains wall outlet.
The controller will power on, automatically detect the Cloudline Pro T10, and display real-time climate data.

4. Configure Your VPD and Climate Triggers

Open the controller menu or link it to your smartphone app via Bluetooth/WiFi.
Set your desired VPD target or maximum temperature/humidity thresholds for your current growth stage.
Program the fan's "Buffer" settings to allow it to smoothly ramp through speeds 1–10, preventing abrupt microclimate swings.

Care and Easy Maintenance Tips

Tool-Free Assembly: Unclip the central motor box from the mounting flanges to slide out the heavy impeller housing for effortless dusting between harvest cycles without taking down your entire ducting array.
Keep Connections Dry: While the probe and fan casing are highly moisture-resistant, ensure the data link ports and power supply blocks remain dry.
