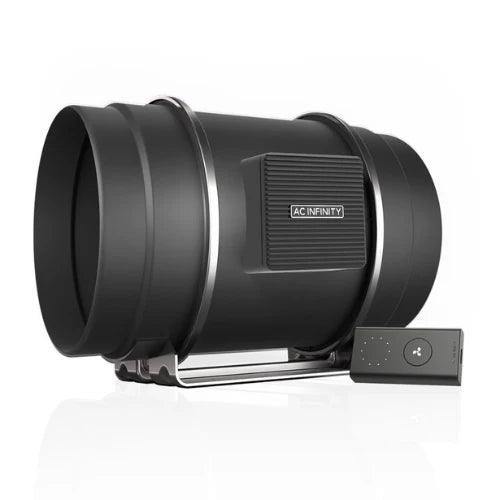

AC Infinity Cloudline Pro S8 | 8 Inch Inline EC Fan

Name: AC Infinity Cloudline Pro S8 | 8 Inch Inline EC Fan
Brand: AC Infinity
SKU: ACI-200-S8
Price: 159.0 GBP
Availability: InStock

£159.00

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Premium Whisper-Quiet Ventilation with Advanced Speed Tuning
Optimise your indoor cultivation climate with the high-performance AC Infinity Cloudline Pro S8. Engineered for growers who require an ideal balance of quiet operation, immense power, and precise environmental control, this 8-inch inline duct fan system sets the industry standard for commercial and large-scale enclosed ventilation. Delivering a massive 807 CFM airflow while remaining exceptionally quiet, it easily handles extreme heat extraction, multi-tent configurations, and heavy-duty odour scrubbing.

The heart of the Cloudline Pro S8 features a cutting-edge, PWM-controlled EC motor that delivers outstanding energy efficiency and ultra-smooth performance at low RPMs without creating irritating motor hums. Its advanced mixed-flow design maintains high static pressure levels, ensuring maximum airflow even when pushing through dense commercial carbon filters or complex, long runs of ducting. Built for longevity in humid grow environments, the IP44-rated dust and splash-resistant housing houses dual ball bearings rated for 67,000 hours of continuous runtime.

How to Use the Cloudline Pro S8 8-Inch Fan System

Follow these straightforward steps to safely mount, connect, and configure your advanced ventilation system.

1. Orient and Mount the Fan

Identify the airflow direction by looking at the directional arrow embossed on the plastic fan body.
Secure the lightweight mounting base horizontally or vertically to your grow room frames, walls, or ceiling supports using the included heavy-duty hardware.
Tip: Because it utilizes dual ball bearings, you can safely install this large fan in any angle or orientation without increasing mechanical wear.

2. Connect Your Ducting and Carbon Filter

Slide your standard 8-inch flexible ducting or a matching 8-inch carbon air filter directly over the fan’s intake or exhaust flanges.
Tighten the connections securely using metal worm clamps to eliminate air leaks and guarantee unscrubbed odours cannot escape into your workspace.

3. Power On and Set Fan Speeds

Plug the inline fan's main power supply adapter into a standard mains wall outlet.
Connect the included wired 10-speed controller to the fan housing to easily adjust your airflow across ten precise ventilation increments.
The controller features built-in backup memory, meaning it will automatically resume your last speed setting if power is temporarily disconnected.

4. Smart Automation Connectivity

To unlock advanced climate scheduling and automation triggers, disconnect the basic speed controller.
Plug the Cloudline Pro S8 directly into a central smart ecosystem controller using a compatible data wire.
Once linked, you can automate the fan to dynamically increase or decrease its speed based on real-time temperature, humidity, or VPD thresholds.

Care and Easy Maintenance Tips

Tool-Free Motor Removal: Cleaning dust and debris off your fan blades is simple. Unclip the central motor box from the mounting flanges to slide out the heavy impeller housing for effortless dusting between harvest cycles.
Electrical Moisture Safety: While the IP44 rating handles high-humidity grow environments, ensure the inline connection pins and power supply blocks remain dry and clear of direct water runoff.
