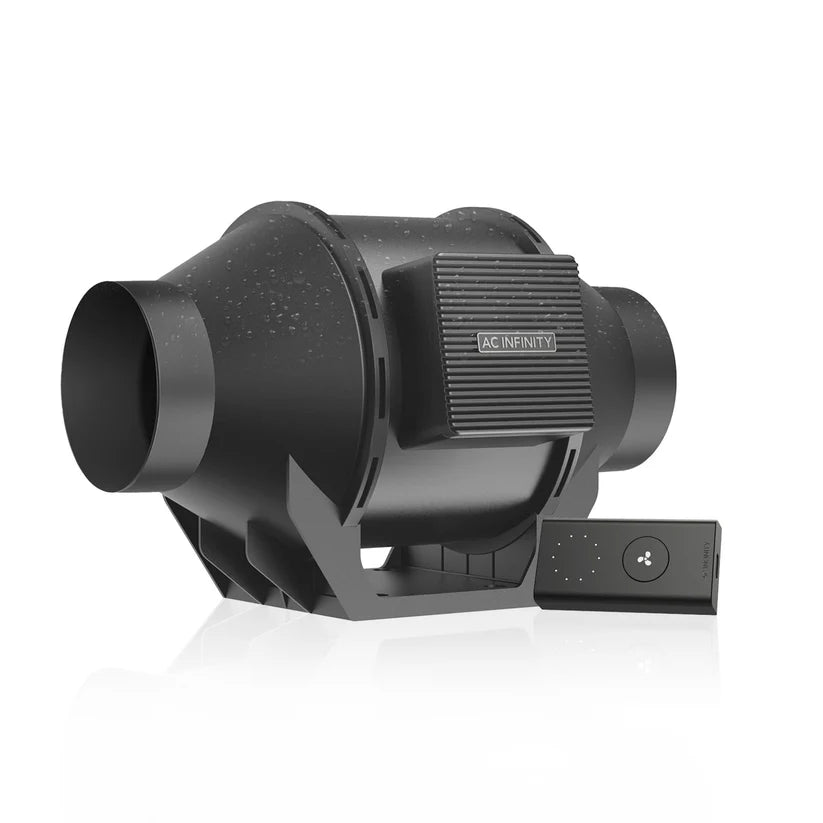

AC Infinity Cloudline H4 | 4 Inch IP65 Fungiculture Fan

Name: AC Infinity Cloudline H4 | 4 Inch IP65 Fungiculture Fan
Brand: AC Infinity
SKU: ACI-100*H4
Price: 87.99 GBP
Availability: InStock

£87.99

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

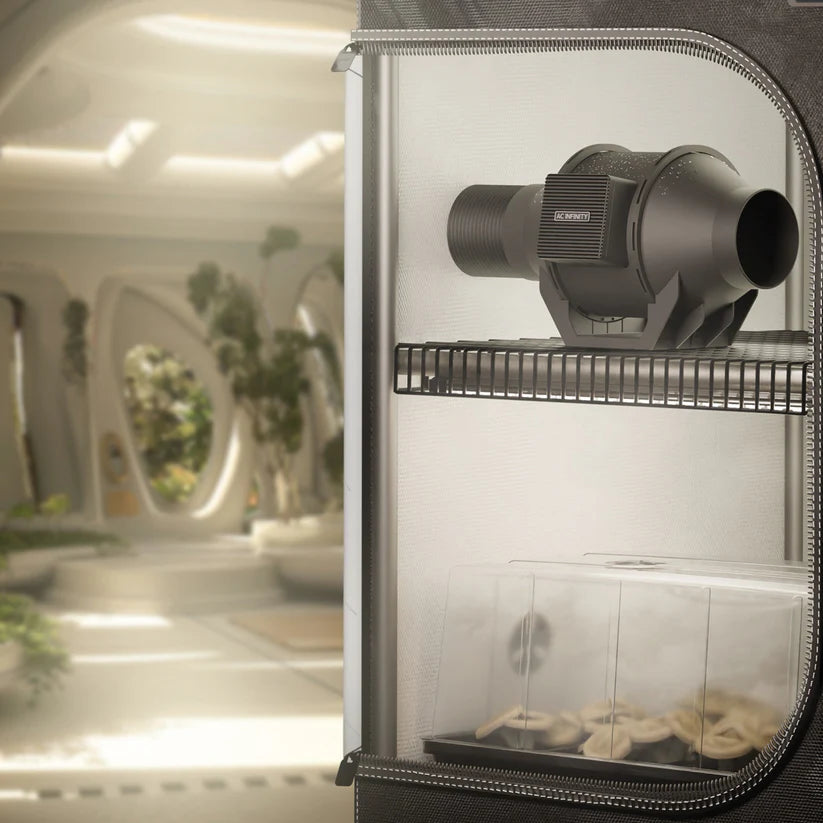

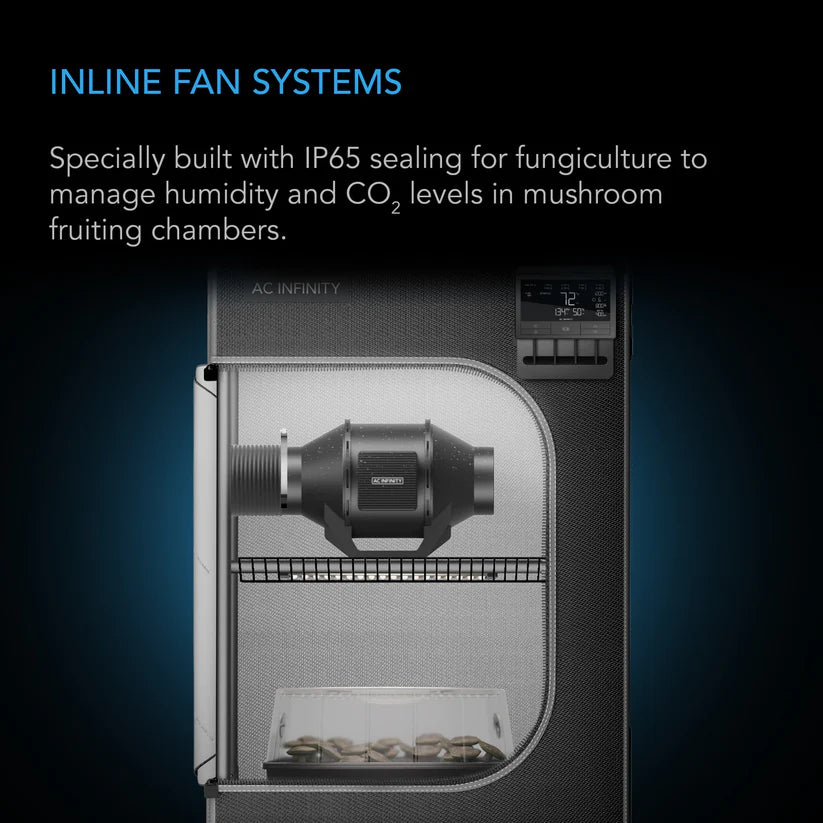

High-Humidity Ventilation Tailored for Precision Mushroom Cultivation
Optimise your fruiting environment with the specialized AC Infinity Cloudline H4 Inline Fan. Engineered specifically to meet the extreme demands of fungiculture, this heavy-duty 4-inch inline fan provides the reliable fresh air exchange (FAE) required to drive healthy mycelium growth and massive pin sets. Unlike standard ventilation hardware that fails under constant moisture exposure, the Cloudline H4 is built to thrive in dense, fog-heavy environments.

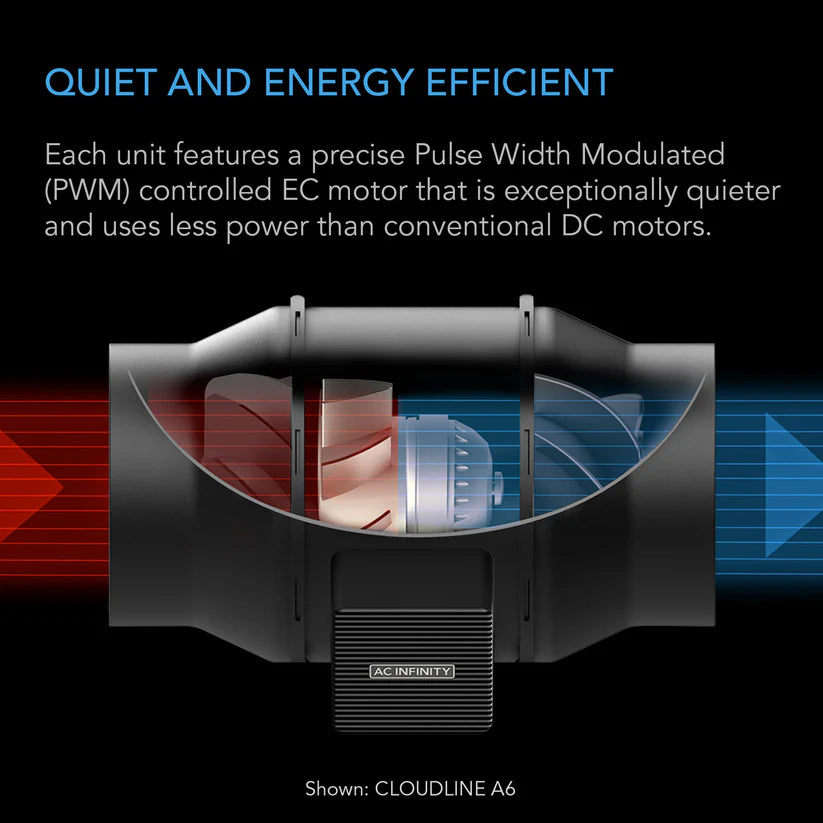

The standout feature of this extractor fan is its lab-tested, IP65-rated housing and motor. Completely sealed against dust and high-velocity water spray, it withstands the continuous 90%+ relative humidity common in mushroom fruiting chambers, automated Martha tents, and large-scale monotubs. Driven by an energy-efficient EC motor, it delivers powerful, smooth airflow at low noise levels without generating excessive radiant heat that could destabilize delicate fruiting temperatures.

How to Use the Cloudline H4 4-Inch Fungiculture Fan

Follow these straightforward steps to safely mount, wire, and configure your moisture-resistant extraction setup.

1. Strategic Mounting for Fresh Air Exchange (FAE)

Locate the directional airflow arrow printed on the fan housing to determine your intake or exhaust layout.
Secure the lightweight mounting base to your grow tent frame or shelving unit.
Tip: For mushroom cultivation, it is highly recommended to use this fan as an exhaust to pull heavy CO2 away from the bottom of your fruiting zone.

2. Wet-Zone Ducting Connection

Slide your standard 4-inch flexible ducting directly over the fan's flanges.
Secure the ducting tightly using stainless steel worm clamps to prevent humid air or spores from leaking into your workspace.
Position the ducting with a slight downward slope away from the fan motor to ensure any condensing moisture drips safely out of the tube rather than pooling inside the impeller casing.

3. Power and Speed Regulation

Plug the inline fan's power supply into a standard mains outlet located safely outside your high-humidity zone.

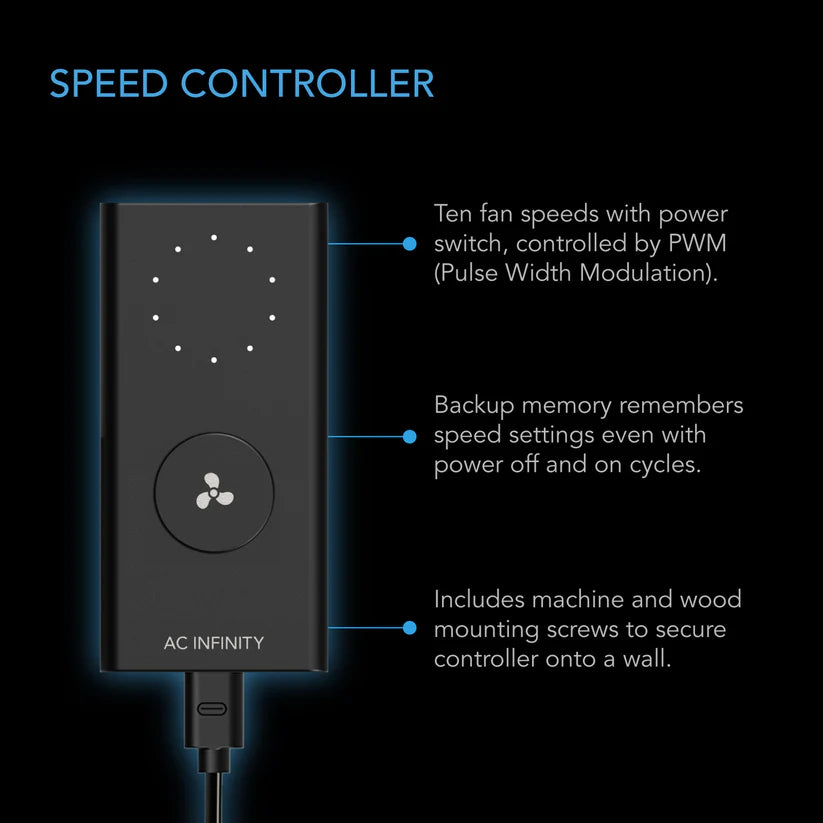

Connect the included wired 10-speed controller to dial in the exact airflow required for your specific mushroom strain.
Adjusting the speed allows you to balance perfect CO2 extraction with optimal relative humidity, preventing your blocks or casings from drying out.

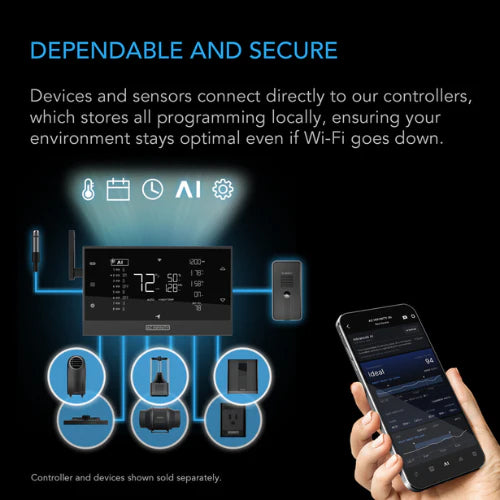

4. Optional Smart Automation Integration

To fully automate your fresh air cycles, disconnect the basic speed controller.
Connect the Cloudline H4 directly into an advanced central ecosystem controller via a compatible data link.
This integration allows you to program specific interval timers or automate the fan to trigger precisely when CO2 levels spike.

Care and Easy Maintenance Tips

Spores and Dust Cleaning: Spores can accumulate on impeller blades over time. Unclip the central motor box from the mounting flanges to easily wipe down the fan blades between cultivation flushes.
Wipe Down Safety: While the IP65 rating means the fan can handle heavy fog, washing down your tent, and airborne moisture, do not intentionally submerge the motor unit or power adapters in water tanks.

Technical Specifications & Engineering Data

Specification Parameter	Engineering Data Value
Duct Connection Size	4 Inches (100 mm)
Total Airflow Capacity	205 CFM (348 m³/h)
Acoustic Noise Output	28 dBA
Maximum Impeller Speed	2800 RPM
Static Pressure Rating	324 Pa
Motor Type Architecture	PWM Controlled EC (Electronically Commutated)
Maximum Power Draw	30 Watts
Average Power Consumption	18 Watts
Current Draw	0.52 A
Ingress Protection Rating	IP-65 (Completely Dust-Tight & Water-Jet Resistant)
Bearing Assembly Type	Dual Ball Bearings (Fully Shielded)
Expected Lifespan (L10)	67,000 Hours Continuous Operating Time
Voltage / Frequency	100V - 240V AC / 50-60Hz
Operating Climate Range	-10°C to 60°C (14°F to 140°F) / Up to 99% RH (Non-Condensing)
Fan Unit Dimensions	19.0 x 30.2 x 17.6 cm (7.48 x 11.89 x 6.93 in)
Housing Construction	High-Impact Moisture-Proof ABS Composite
Controller Interconnect	Universal Intelligent System (UIS) via Type-C Sealed Connection Link
