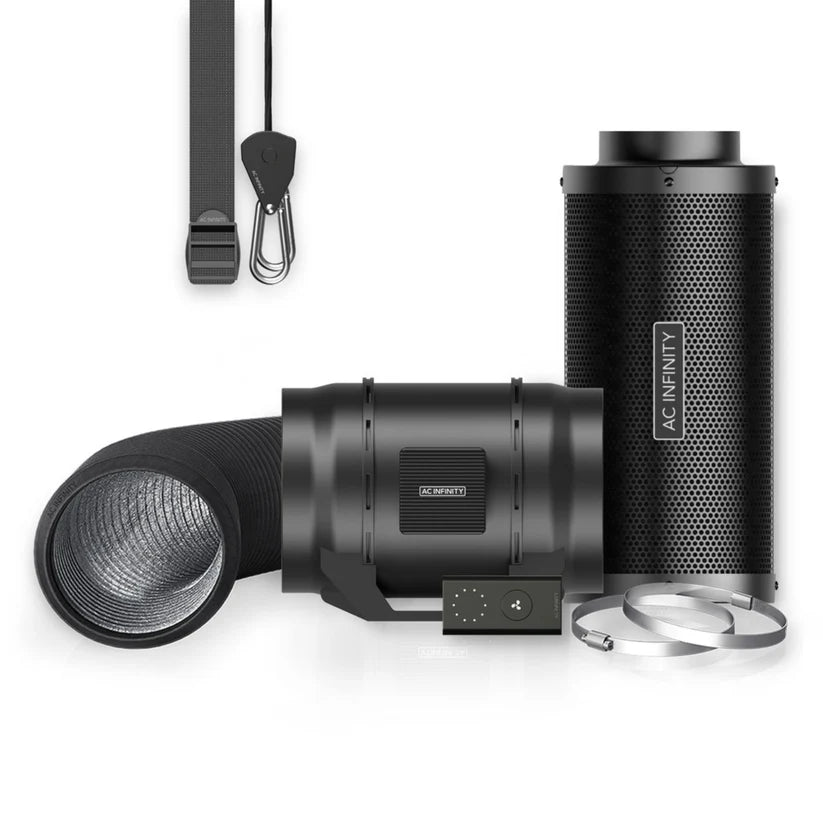

AC Infinity 8" Inline Fan Carbon Filter & Ducting Kit

£279.00
£279.00
Sale Sold out
Tax included. Shipping calculated at checkout.
The Ultimate Heavy-Duty Grow Room Ventilation Upgrade
Establish the perfect microclimate and eliminate unwanted smells with the AC Infinity 8” Inline Fan, Carbon Filter & Ducting Combo Kit. Designed as a complete, out-of-the-box ventilation package, this heavy-duty system includes everything you need to manage heat, humidity, and airflow in large grow rooms, multi-tent arrays, or commercial setups. Take the guesswork out of matching separate components—this hardware combination ensures optimal static pressure compatibility for efficient, leak-free performance under heavy loads.
At the core of this kit is a premium, mixed-flow 8-inch inline fan powered by an energy-efficient EC motor, delivering a massive 807 CFM airflow while maintaining exceptionally quiet operation. It connects directly to the included Australian Virgin Charcoal Carbon Filter, which features an extra-thick, dense bed of high-porosity charcoal to scrub all organic odours, airborne pollutants, and pollen. Completed with a 4-layer flexible aluminum ducting line, this combo kit keeps your large-scale grow space running cool, clean, and completely discreet.
Technical Specifications & Engineering Data
Specification Parameter Engineering Data Value
Duct Connection Size 8 Inches (200 mm)
Total Airflow Capacity 807 CFM (1371 m³/h)
Acoustic Noise Output 39 dBA

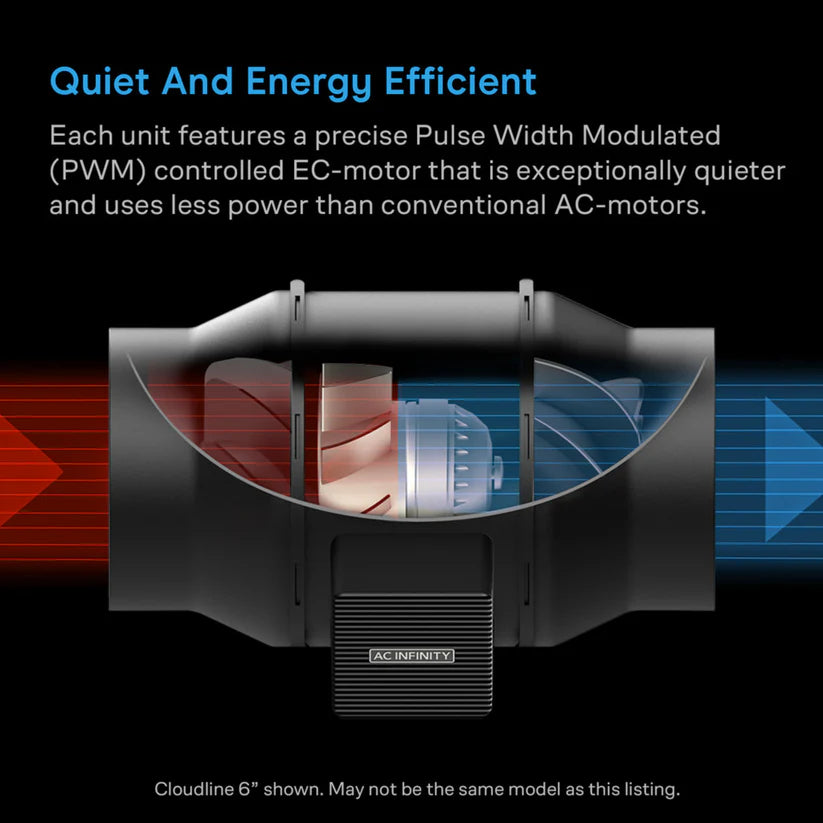

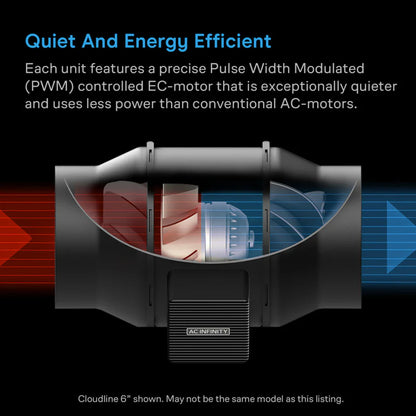

Motor Type Architecture PWM Controlled EC (Electronically Commutated)

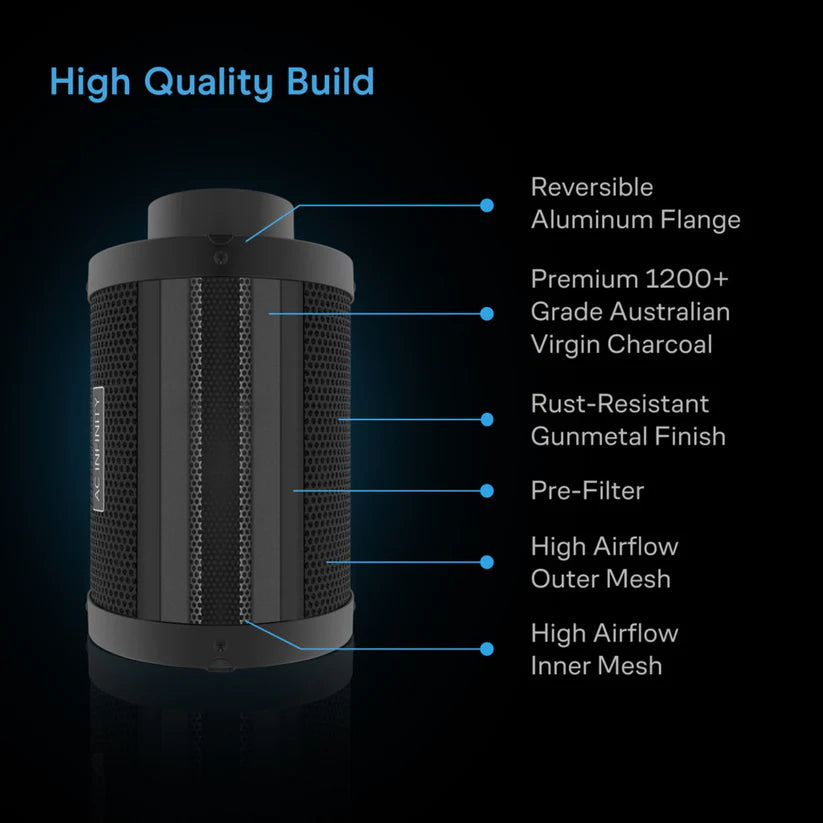

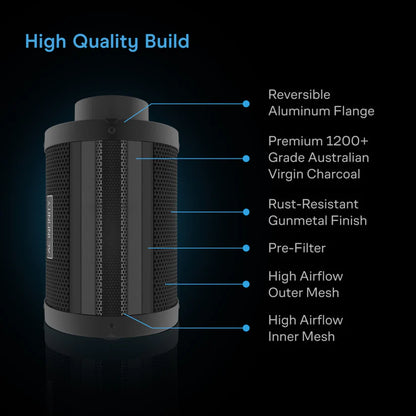

Carbon Filter Material 1200+ IAV Australian Virgin RC412 Activated Charcoal
Filter Bed Thickness 38 mm (High-Porosity Machine Packed Bed)
Ducting Composition 4-Layer Construction (Aluminum, Thermoplastic, PVC)
Maximum Power Draw 110 Watts
Ingress Protection Rating IP-44 (Dust and Splash Resistant)
Fan Bearing Assembly Dual Ball Bearings (67,000 Hour Lifespan)
Voltage / Frequency 100V - 240V AC / 50-60Hz
Included Accessories Wired 10-Speed Controller, Pre-Filter Cloth, 2x Heavy Duty Clamps
How to Install the AC Infinity 8" Ventilation Combo Kit
Follow these straightforward steps to safely mount, connect, and configure your heavy-duty extraction system.
1. Plan and Hang Your Components
  • Identify the airflow direction on the inline fan using the embossed arrow on the heavy-duty body.
  • For optimal odor control, hang the massive Carbon Filter inside the top section of your grow room or tent using heavy-duty fabric straps or chain links capable of supporting its weight.
  • Mount the Inline Fan next to the filter, making sure the arrow points away from the filter to pull stale air through the charcoal bed.
2. Connect the System with Ducting
  • Fit the white fabric pre-filter sleeve over the outside of the carbon filter to catch large dust particles and airborne debris.
  • Slide the raw end of the 8-inch aluminum ducting over the filter flange and connect it directly to the intake side of the fan.
  • Secure this connection tightly using one of the included stainless steel worm clamps to prevent unscrubbed air from bypassing the filter.
  • Attach the remaining ducting line to the exhaust side of the fan and route it out through your ventilation socks to vent heat away from the room.
3. Power On and Set Fan Speeds
  • Plug the inline fan's power supply into a standard wall outlet.
  • Connect the included wired 10-speed controller to easily adjust your airflow across ten precise speeds, balancing effective cooling with minimum room noise.
Care and Maintenance Tips
  • Rotate the Pre-Filter: Wash the fabric pre-filter cloth every 3 to 4 months to prevent dust from choking the air intake and straining the fan motor under heavy loads.
  • Carbon Filter Lifespan: For best performance, replace the carbon filter every 12 to 24 months, depending on your grow room's relative humidity and odor intensity.
  • Tool-Free Cleanup: Unclip the fan's central motor box from the mounting frame to wipe down the large impeller blades between harvest cycles without taking down your entire ducting array.
  • Express Delivery
  • Expert Advice
  • Visit Us Today
Secure checkout with
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

View Product Details

Complete 8-Inch Ventilation & Odour Control in One Kit

Take the guesswork out of grow room ventilation with the AC Infinity 8-Inch Inline Fan, Carbon Filter & Ducting Kit. This complete air filtration system combines a powerful EC inline fan, premium Australian activated carbon filter and heavy-duty flexible ducting to create efficient airflow while eliminating unwanted odours. Perfect for larger grow tents and dedicated grow rooms, this all-in-one ventilation kit delivers quiet operation, reliable climate control and professional performance straight out of the box.

Shop AC Infinity Ventilation

Frequently Asked Questions

This complete ventilation kit includes an 8-inch AC Infinity CLOUDLINE inline fan, premium Australian activated carbon filter, heavy-duty four-layer flexible ducting, pre-filter cloth, mounting clamps and a speed controller. Everything you need to ventilate and control odours in one convenient package.

The 8-inch ventilation kit is ideal for large grow tents, multiple grow tent setups and dedicated grow rooms where high airflow is essential. With airflow of up to 807 CFM, it's designed to efficiently manage heat, humidity and fresh air exchange in larger indoor growing environments.

The included carbon filter uses 1200+ IAV Australian Virgin Activated Carbon with a deep 38mm carbon bed to capture unwanted odours, volatile organic compounds (VOCs) and airborne contaminants before air leaves your grow space. This helps keep your indoor garden discreet while maintaining clean airflow.

Buying a complete AC Infinity ventilation kit ensures the inline fan, carbon filter and ducting are perfectly matched for airflow and static pressure. This improves overall efficiency, simplifies installation and removes the uncertainty of choosing compatible components individually.

Yes. The EC motor has been designed to provide powerful airflow while keeping energy consumption low and operating noise to a minimum. The mixed-flow fan design reduces vibration, making it suitable for growers who want high performance without excessive noise.

Absolutely. The AC Infinity 8-Inch Air Filtration Kit can easily be expanded with compatible smart controllers, environmental sensors, circulation fans and other AC Infinity UIS™ devices. This allows you to build a fully integrated ventilation and climate control system as your indoor growing setup evolves.
